FH44LS

Electric latching Relay

Feature Description

● 12Aswitchingcapability
● Singlecoilanddoublecoilsareallavailable
● Smallsize，theheightoftheproduct isonly12mm

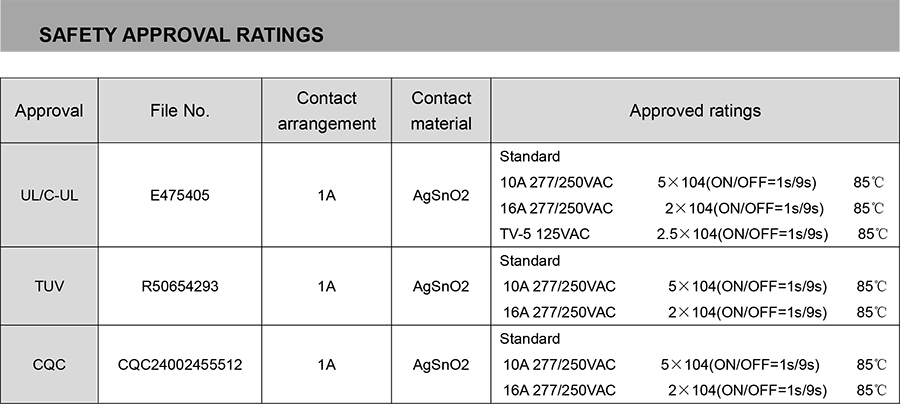

● ULinsulationsystem:ClassF
● Environmental friendlyproduct(RoHScompliant)

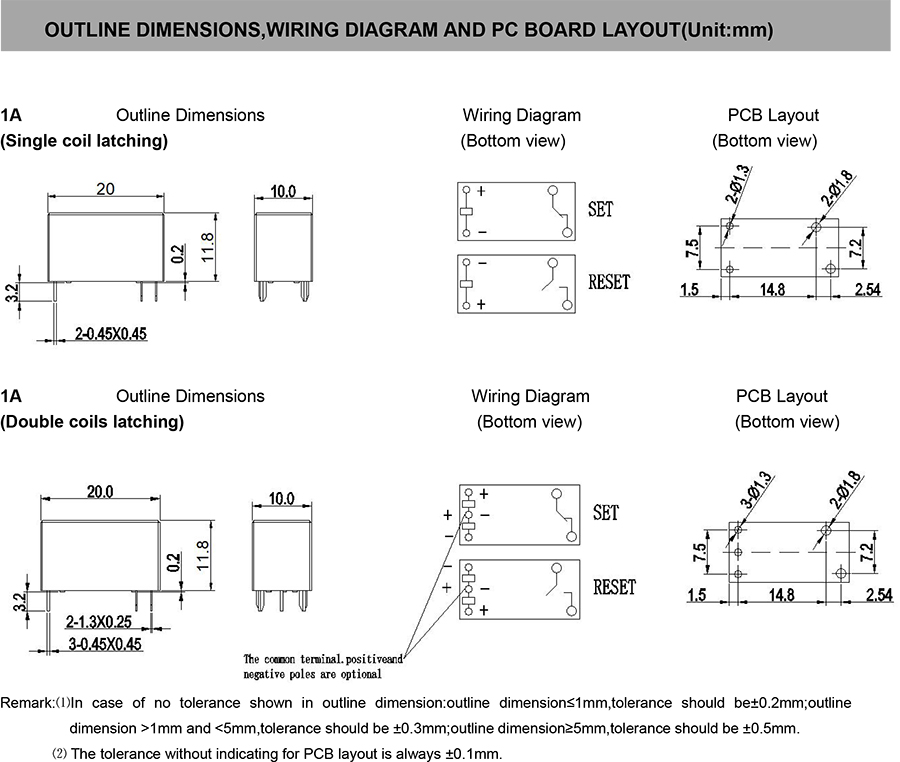

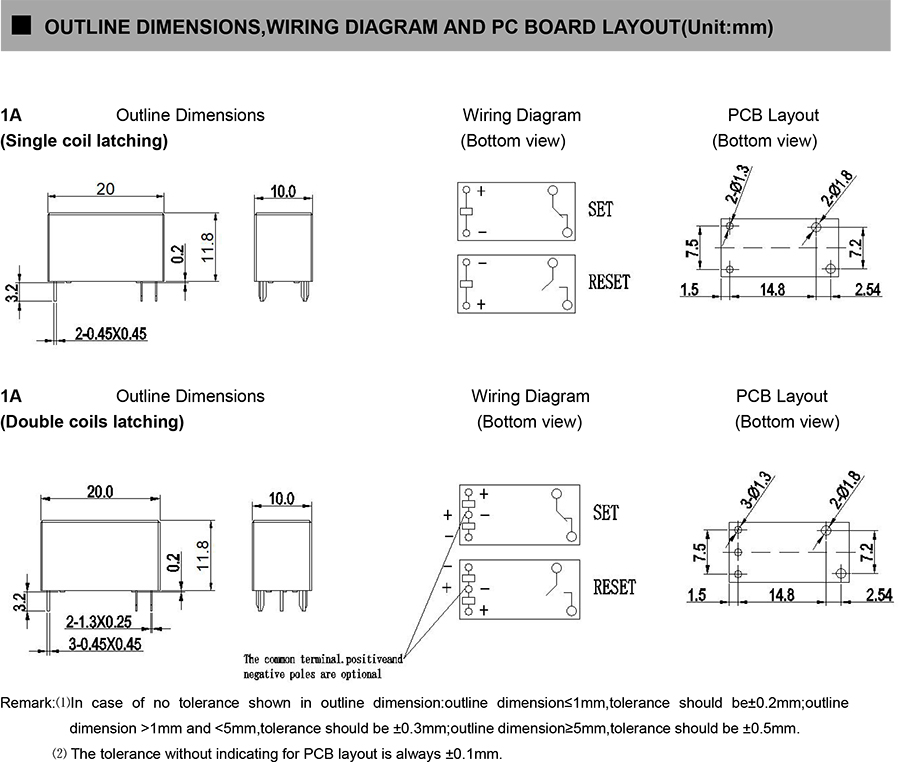

● OutlineDimensions:(20.0×10.0×11.8)mm
● Mainapplication:Homeappliance､Smarthome

Product Description

Download PDF
