Feature Description

● 16A switching capability
● Single coil and double coils are all available
● Highly sensitive product,coil power consumption is 250mW
● More lower height(the height is 15.5mm)
● Breakdown voltage (between coil and contacts):4KV
● UL insulation system:Class F
● Environmental friendly product(RoHS compliant)

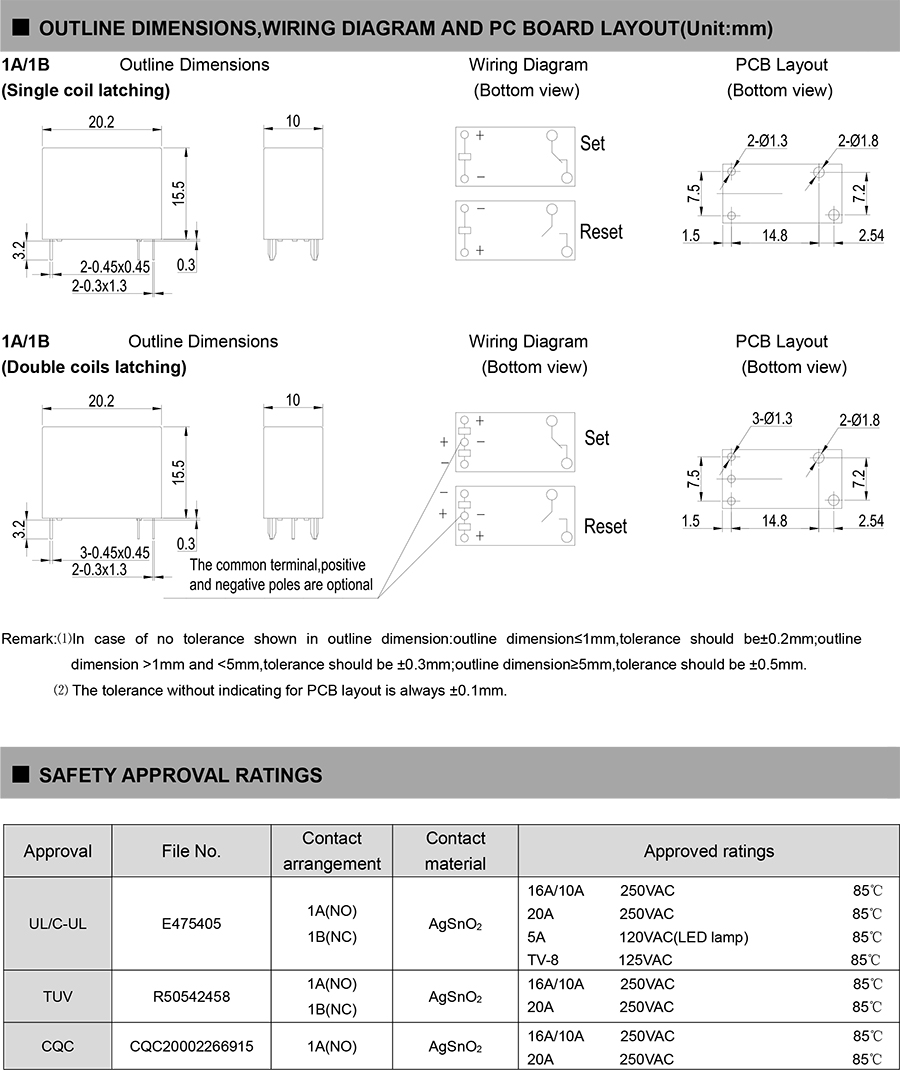

● Outline Dimensions:(20.2×10×15.5)mm
● Main application:Home appliance､Smart home
