Feature Description

●16A /20A switching capability
●Single coil and double coils are optional
●High sensitive,coil power is 250mW
●More lower height(the height is 15.8mm)
●Breakdown voltage(between contact and coil):5KV
●UL insulation system:Class F
●Environment-friendly product(RoHS compliant)

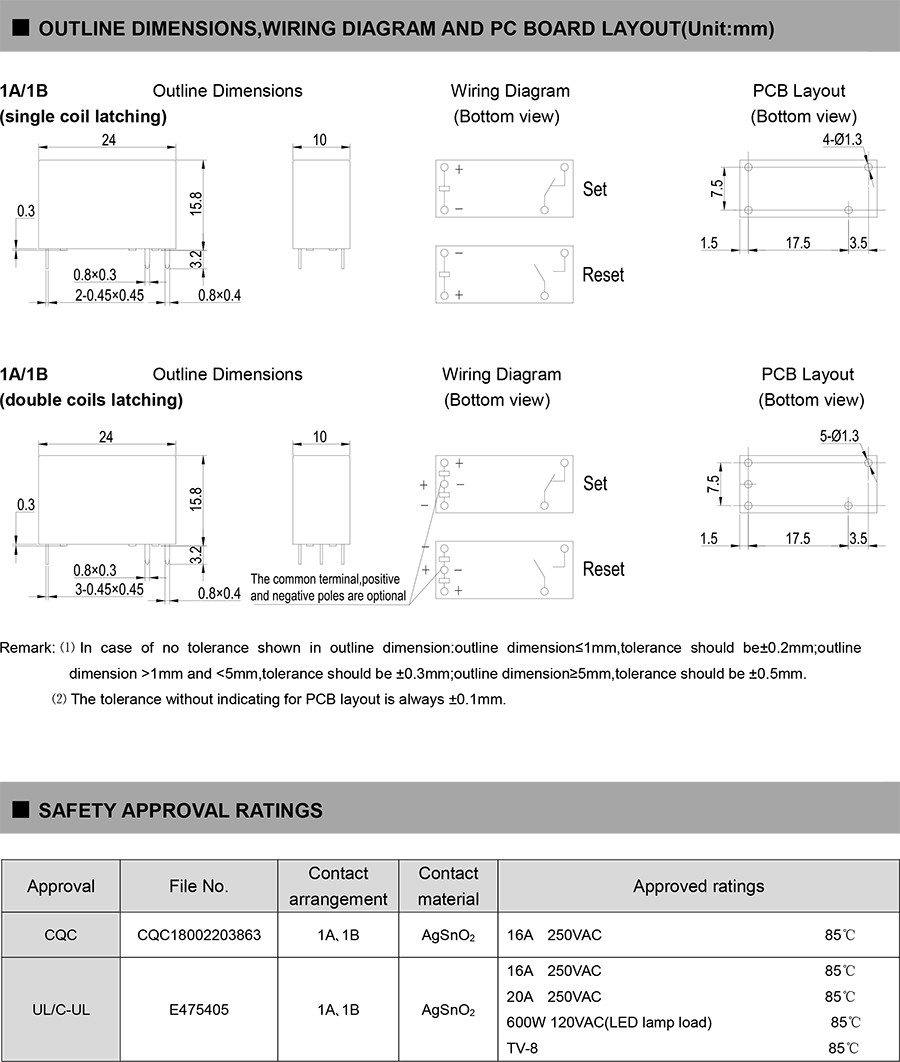

●Outline Dimensions:(24.0×10.0×15.8)mm
●Main application:Smart home､Lighting control､Electric power meter
