Power Relay

Feature Description

● 16A switching capability
● Provide the product of highly efficient,magnetic circuit for
high sensitivity:200mW
● Breakdown voltage (between coil and contacts): 4KV
● Creep age distance and air distance are greater than 6.5mm
● We can provide the product with ambient temperature is 105℃
● UL insulation system:Class F
● Environment-friendly products (RoHS compliant)

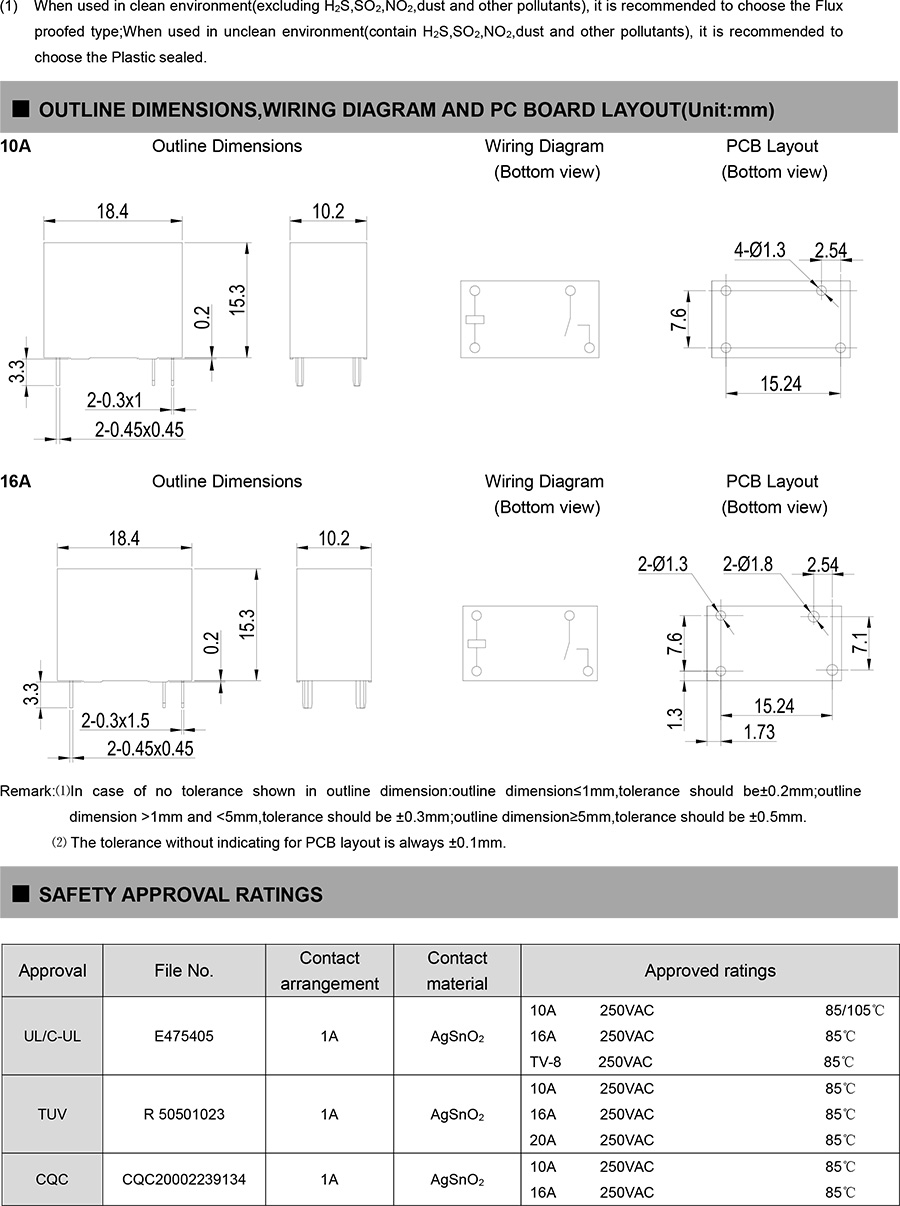

● Outline Dimensions:(18.4×10.2×15.3)mm
● Main application:Smart switches, Smart sockets, Home appliance
