Feature Description

● 20A switching capability
● We can provide the product with ambient temperature is 105℃
● The contact can withstand 750A 10ms short-circuit impulse current
● The contact on and off can be controlled by the hand control switch
● Can provide the product meet the standard of IEC60335-1
● UL insulation system:Class F
● Environment-friendly product(RoHS compliant)

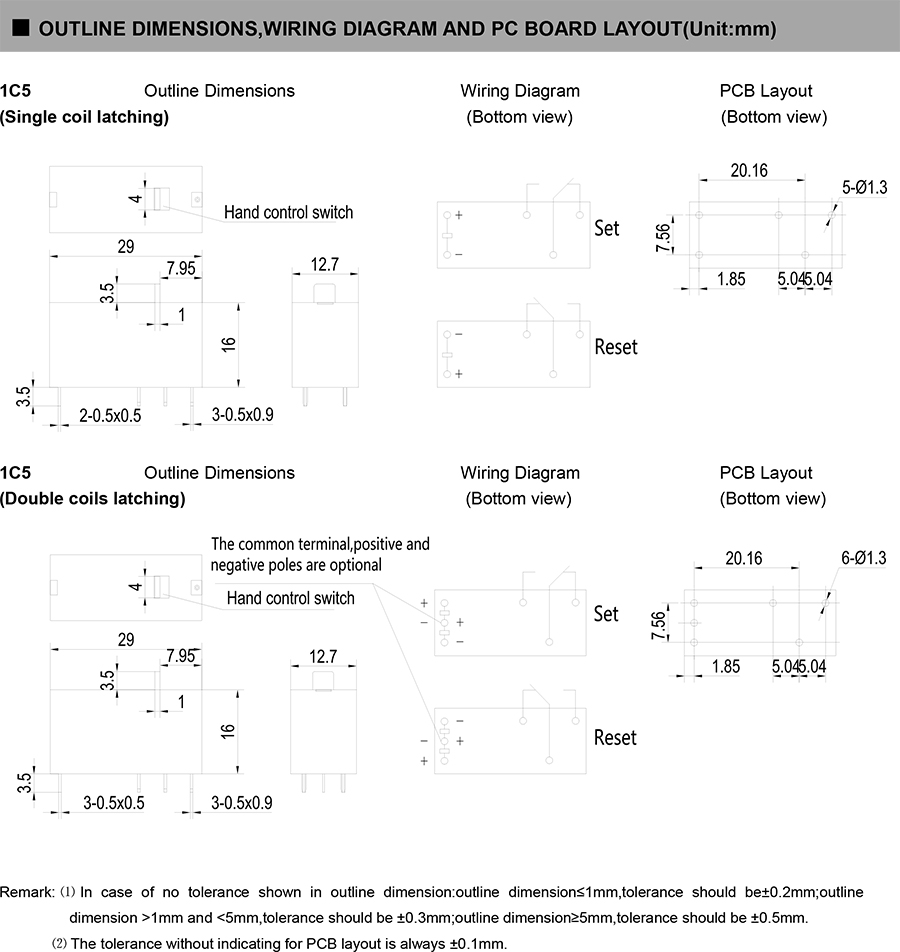

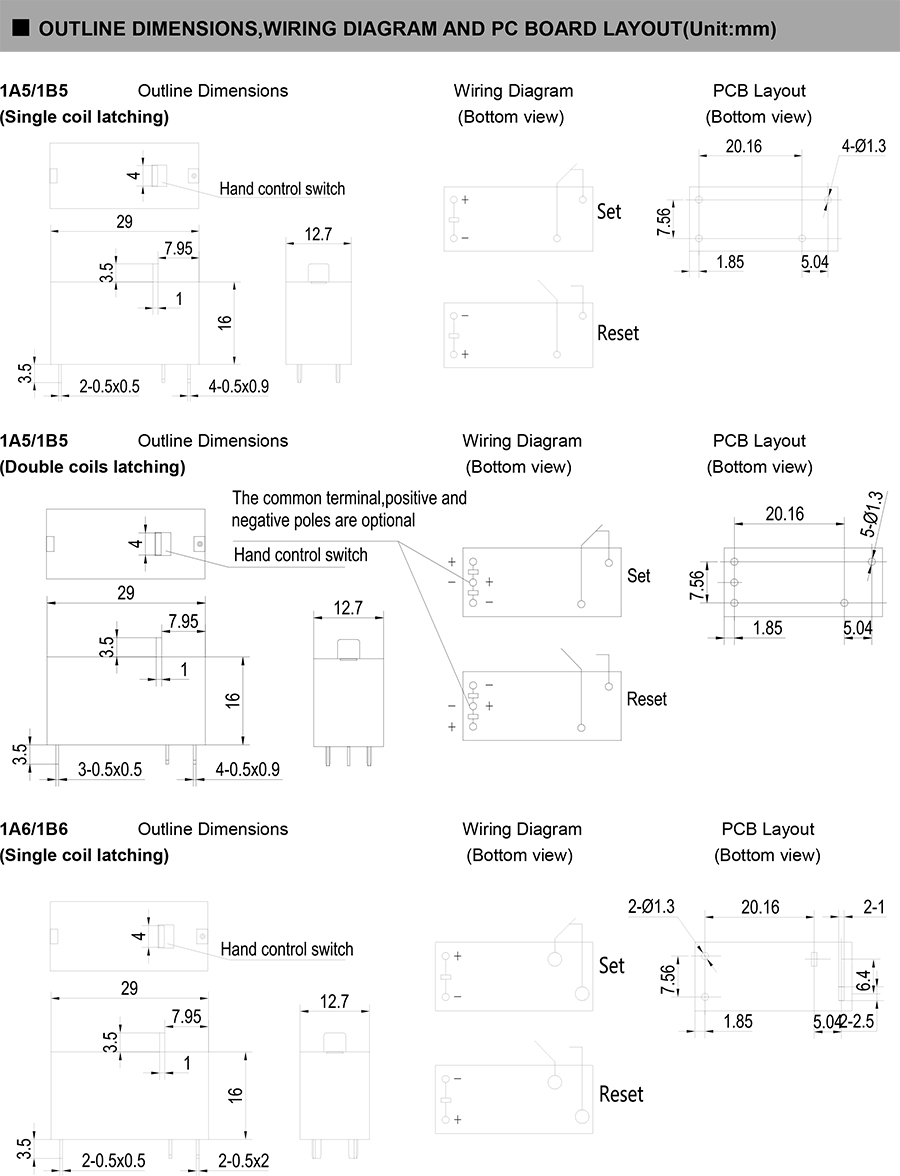

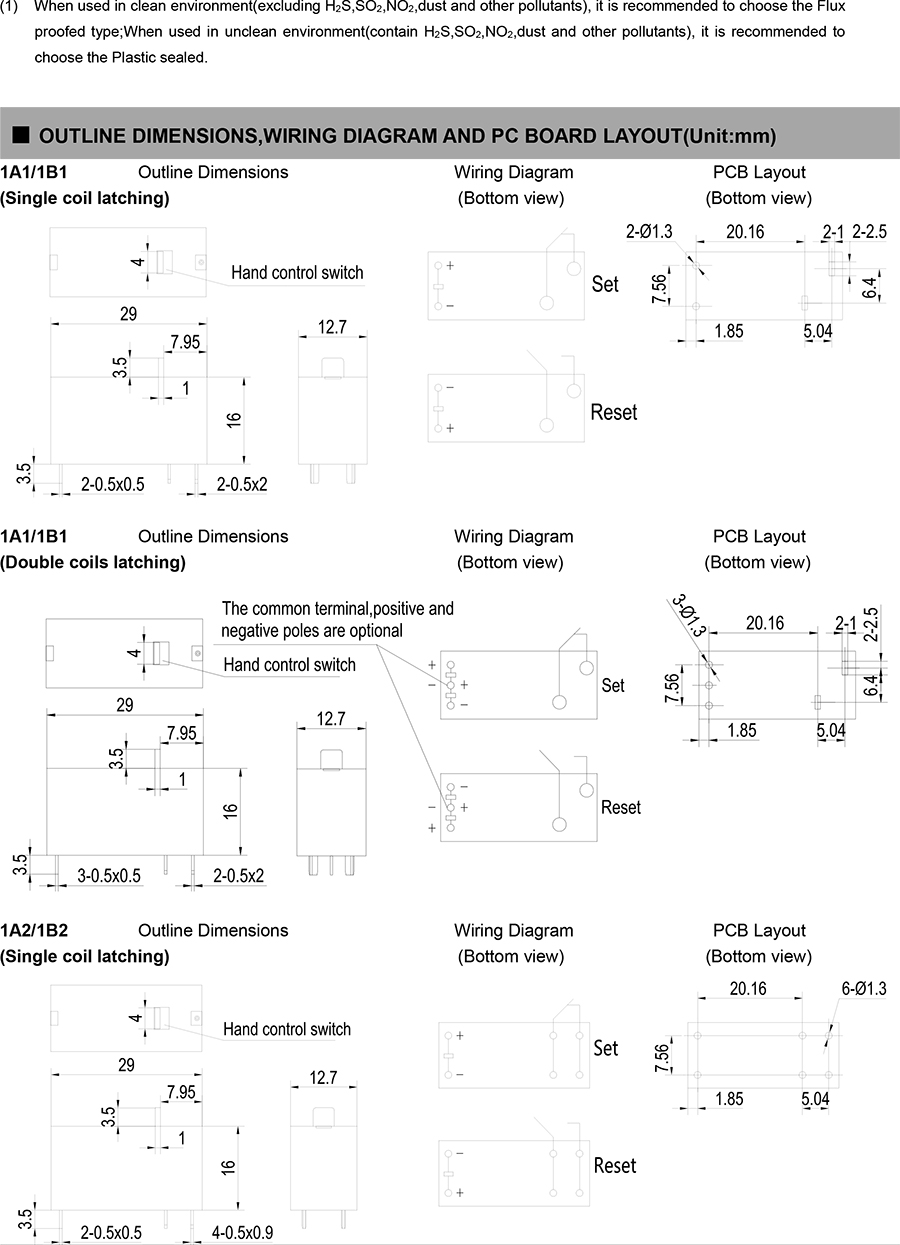

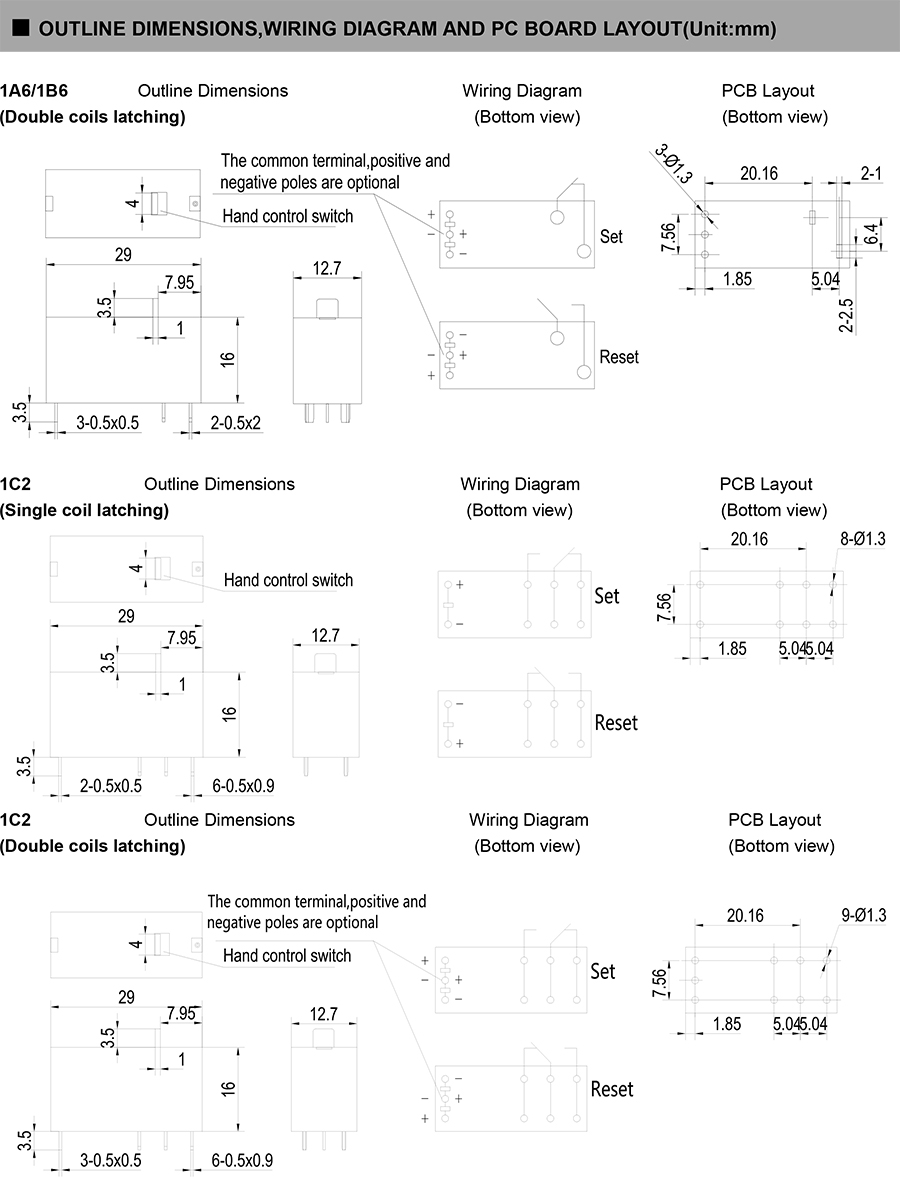

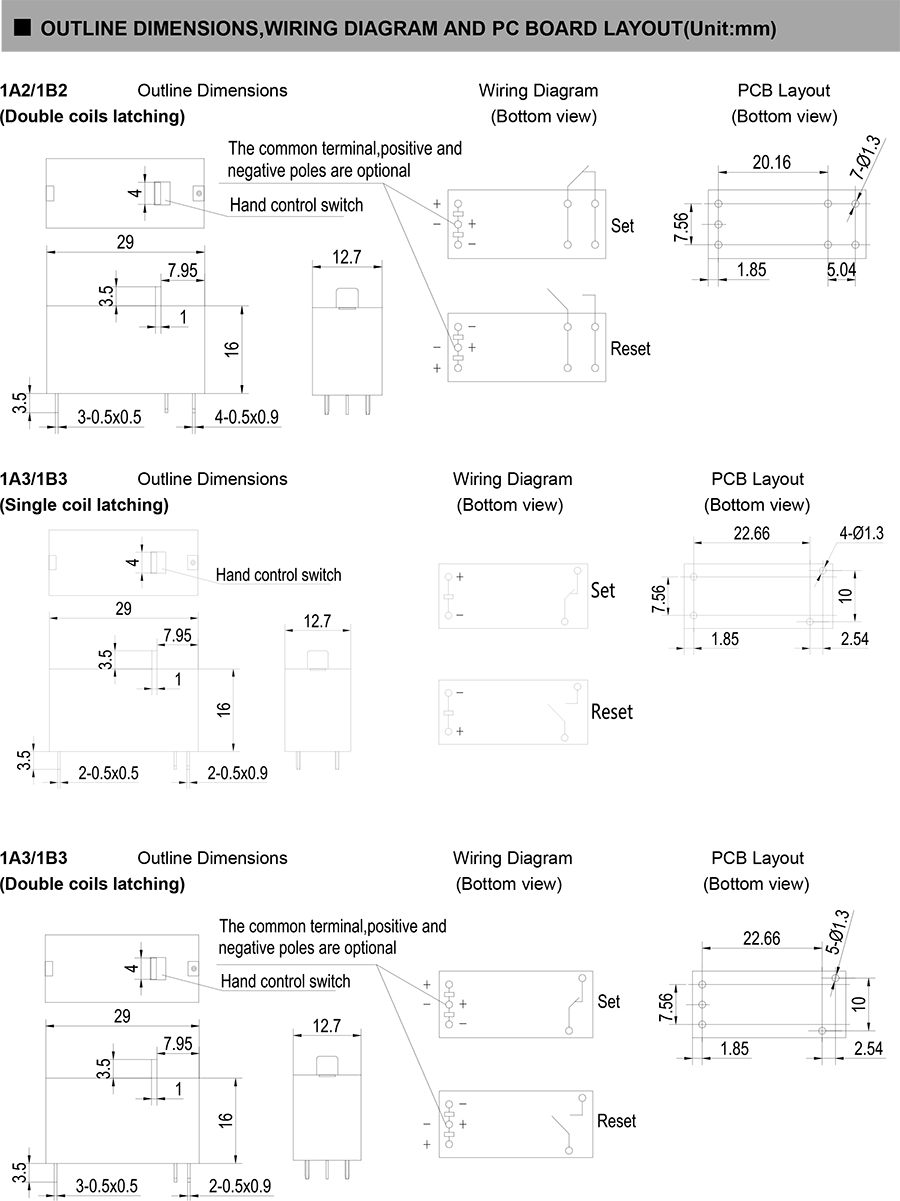

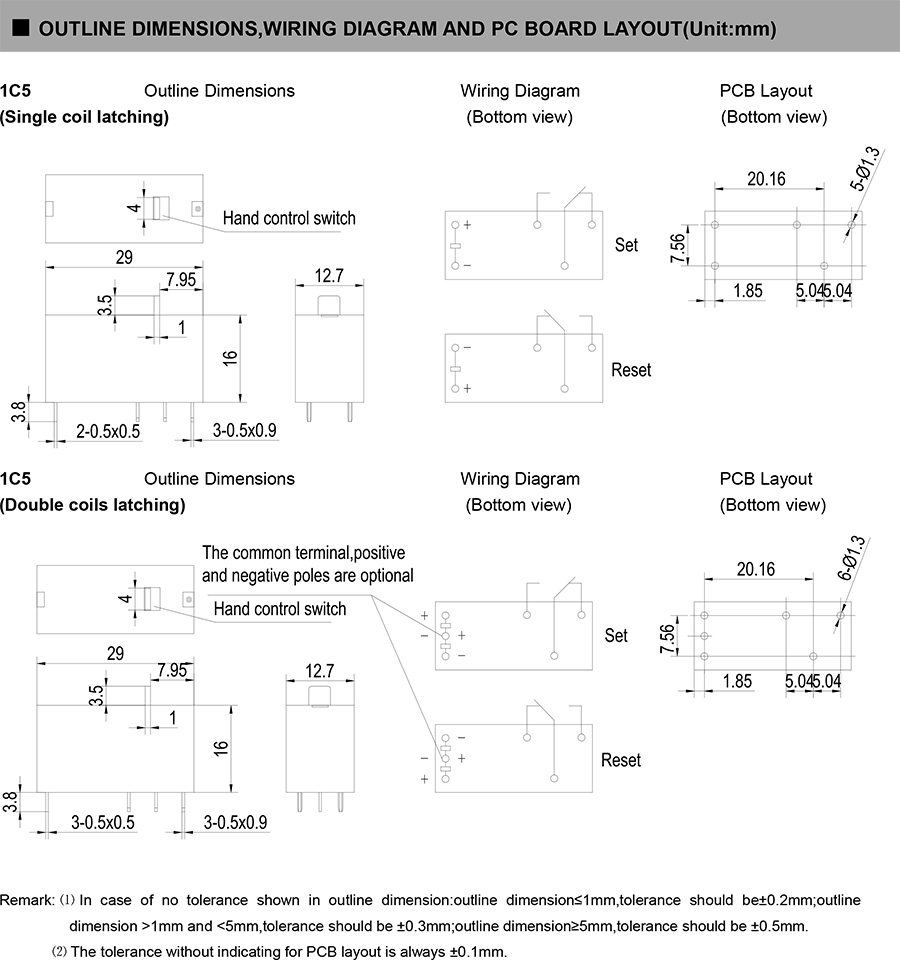

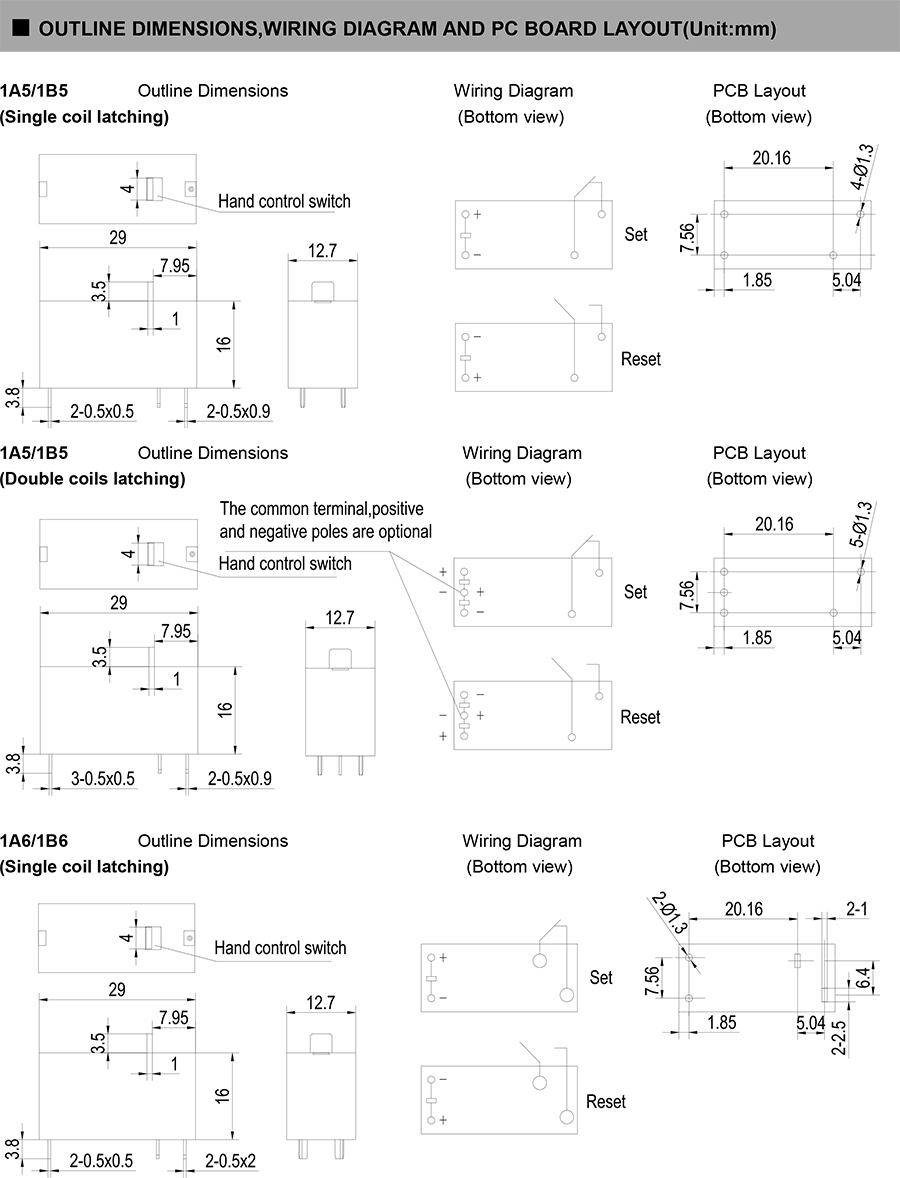

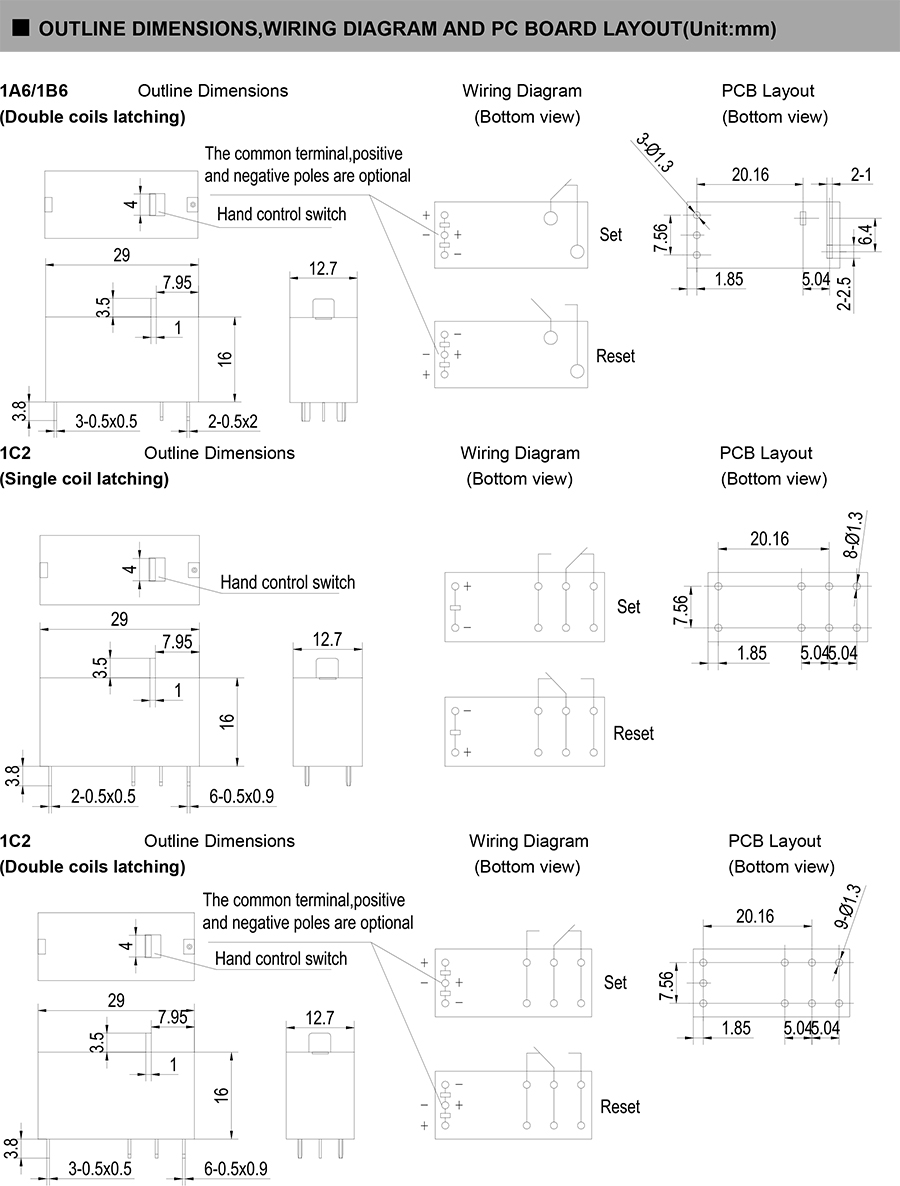

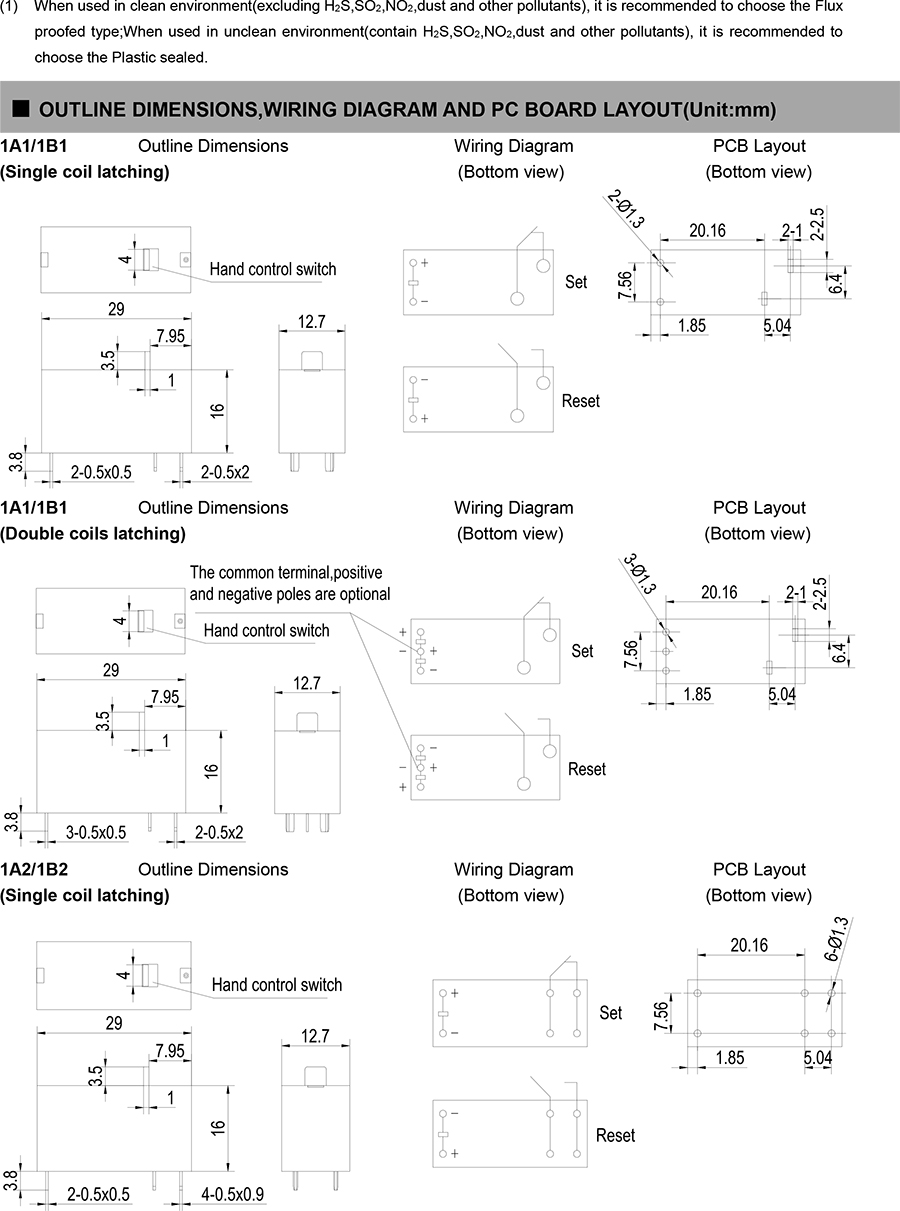

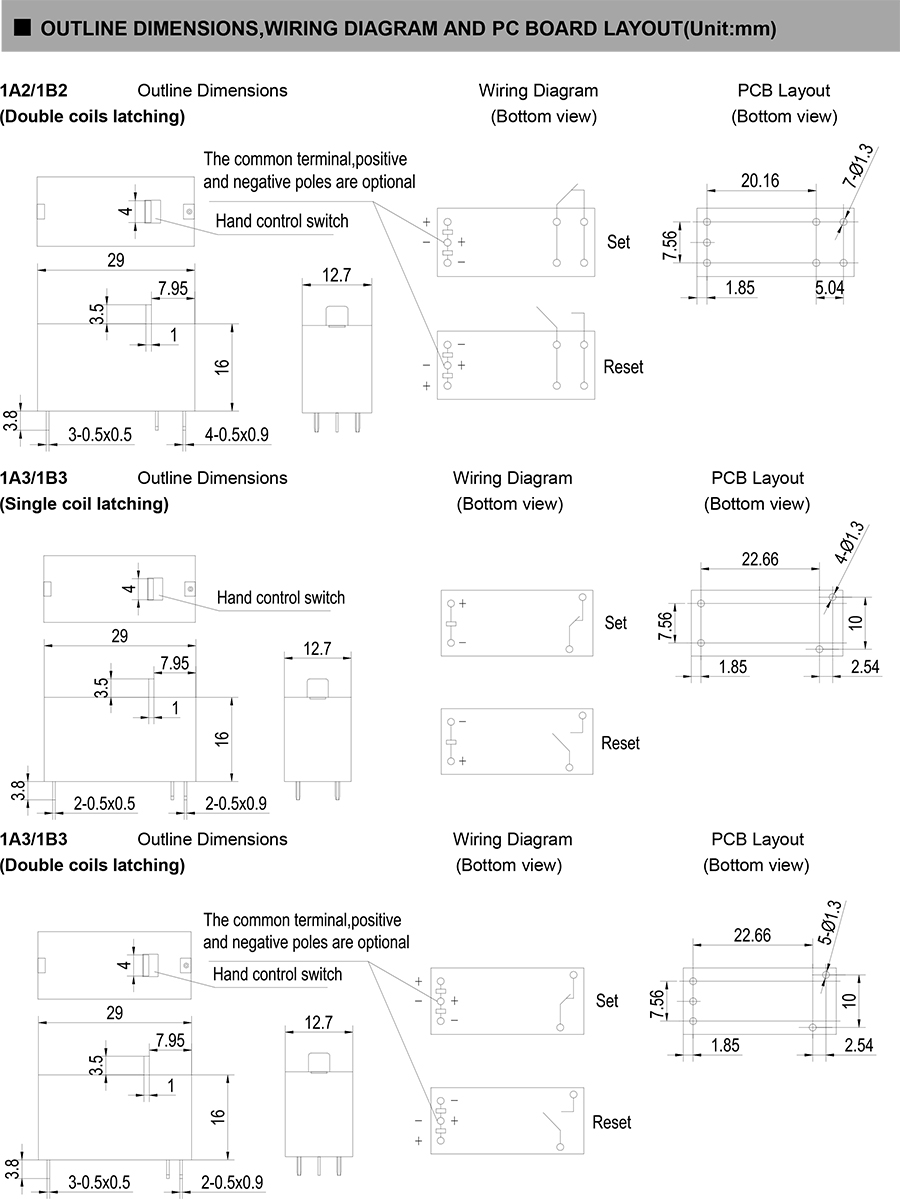

● Outline Dimensions:(29.0×12.7×16.0)mm
● Main application:Smart home､Lighting control
