Feature Description

● 120A switching capability
● External accessories such as manganese copper shunts and transformers can be ordered according to customer requirements
● The withstand voltage of the medium between the coil and the contact reaches 4KV
● Compliant to UC3 requirements of EN62052-31:2016 and 1EC62052-31:2015Standard, as well as AU NMIM 6-1 Standard
● Environment-friendly product(RoHS compliant)

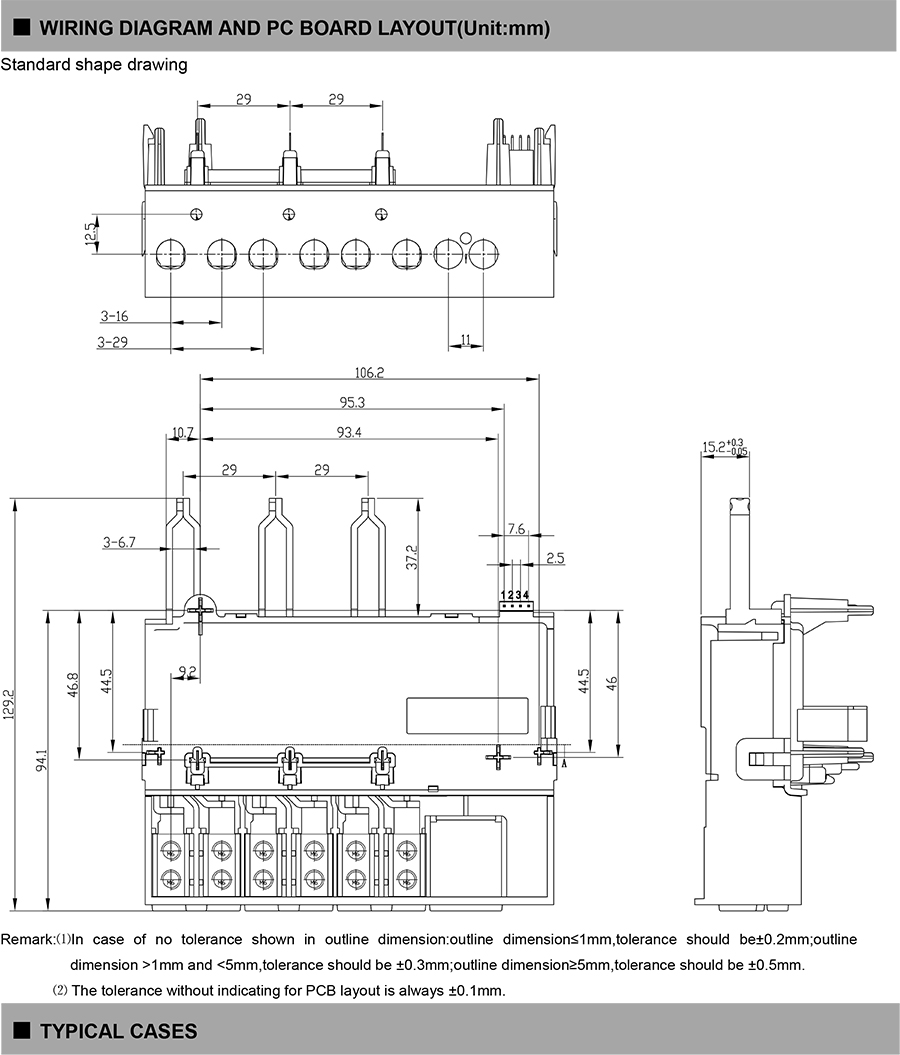

● Outline Dimensions:(130.0×129.2×56.0)mm
● Main application: smart meter
