FH30L-90
Electric latching Relay

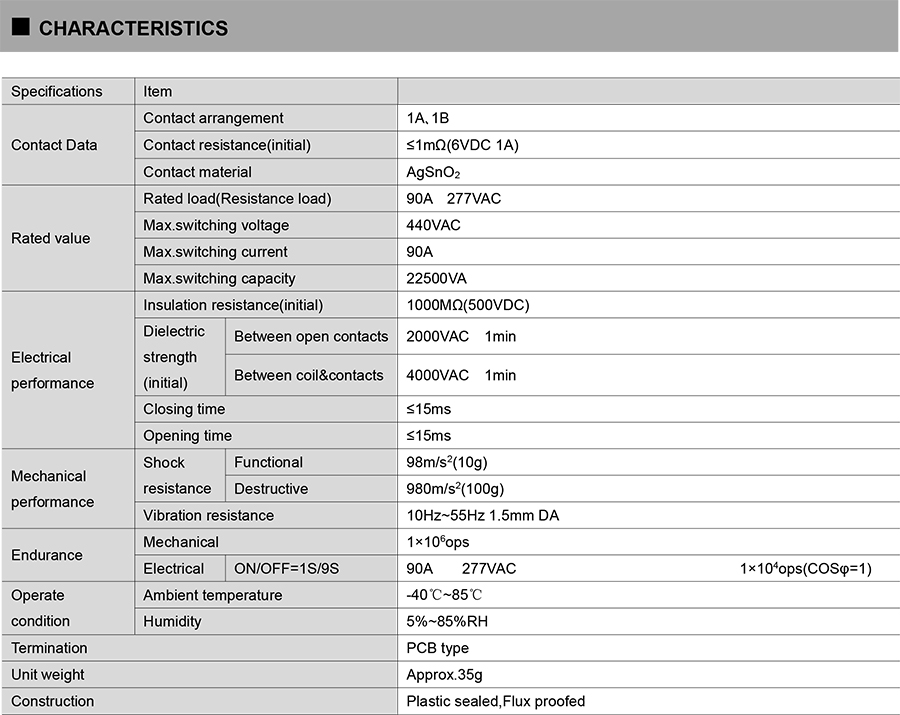

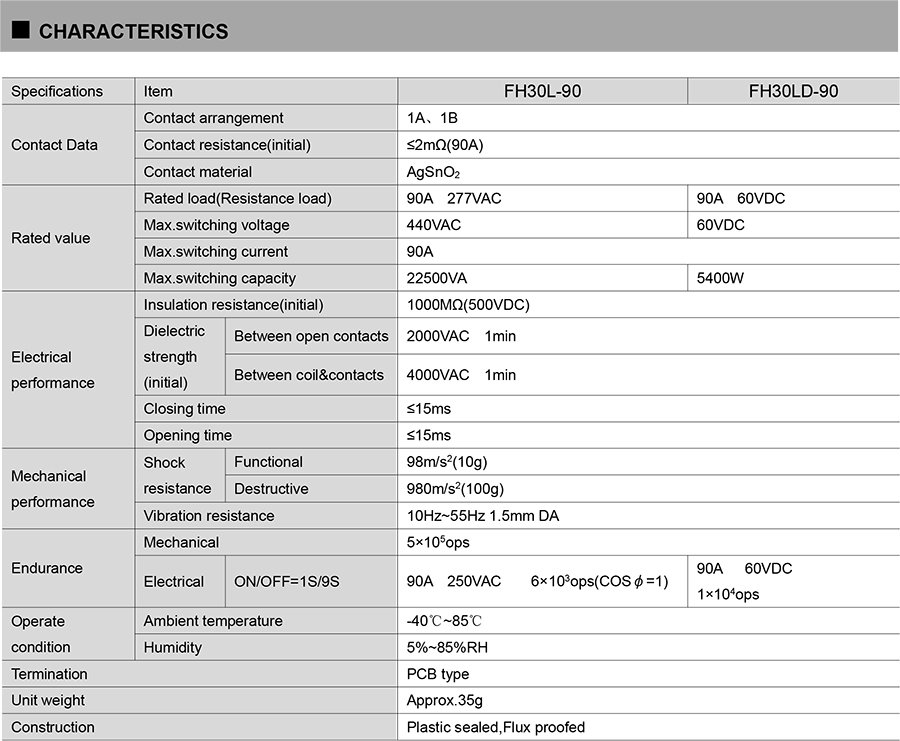

Feature Description
● 90A contact switching capability
● Withstand capacity 2000A 0.3ms 300 times can be off
● Surge current resistance up to 500A/2ms
● Contact gap is 1.5mm
● Contact on and off can be controlled by manual control switch
● UL insulation system:Class F

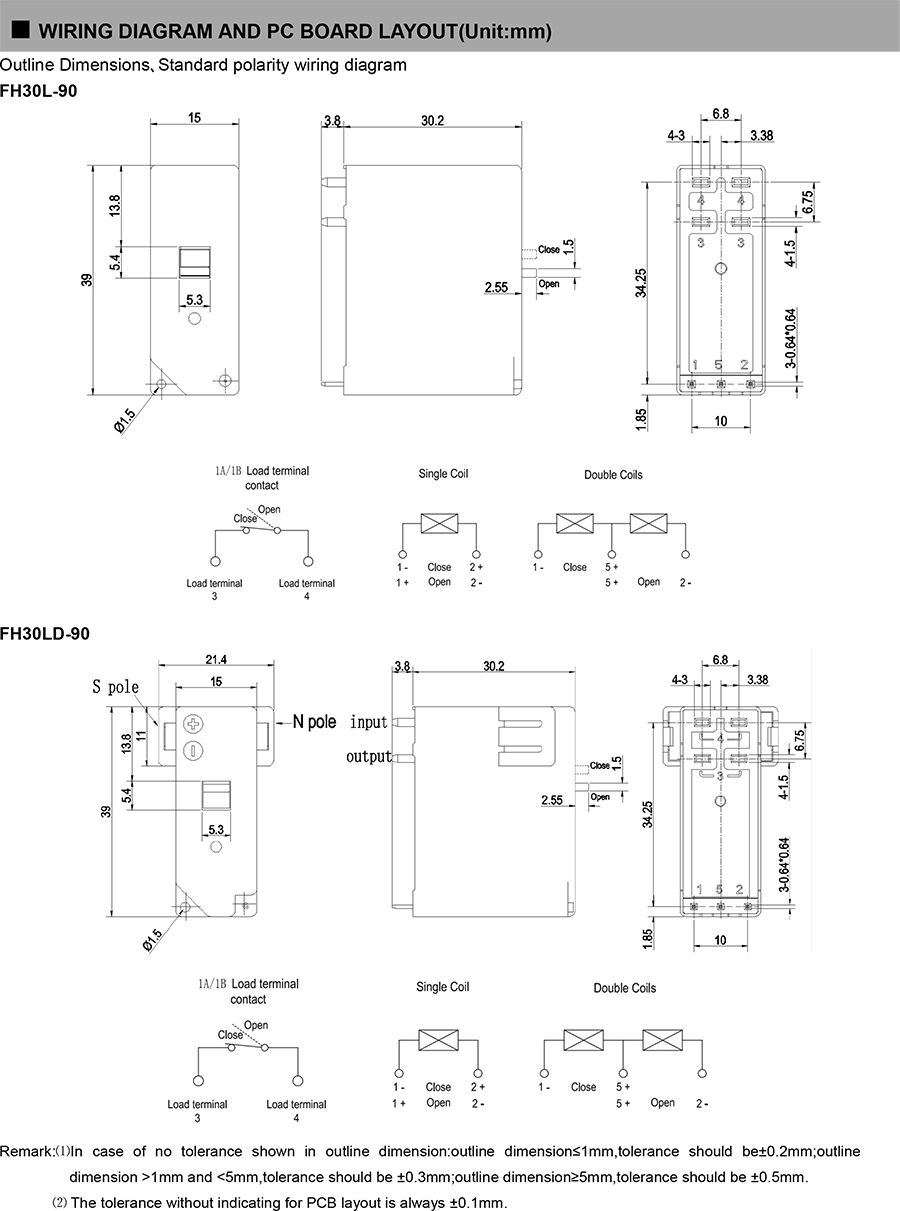

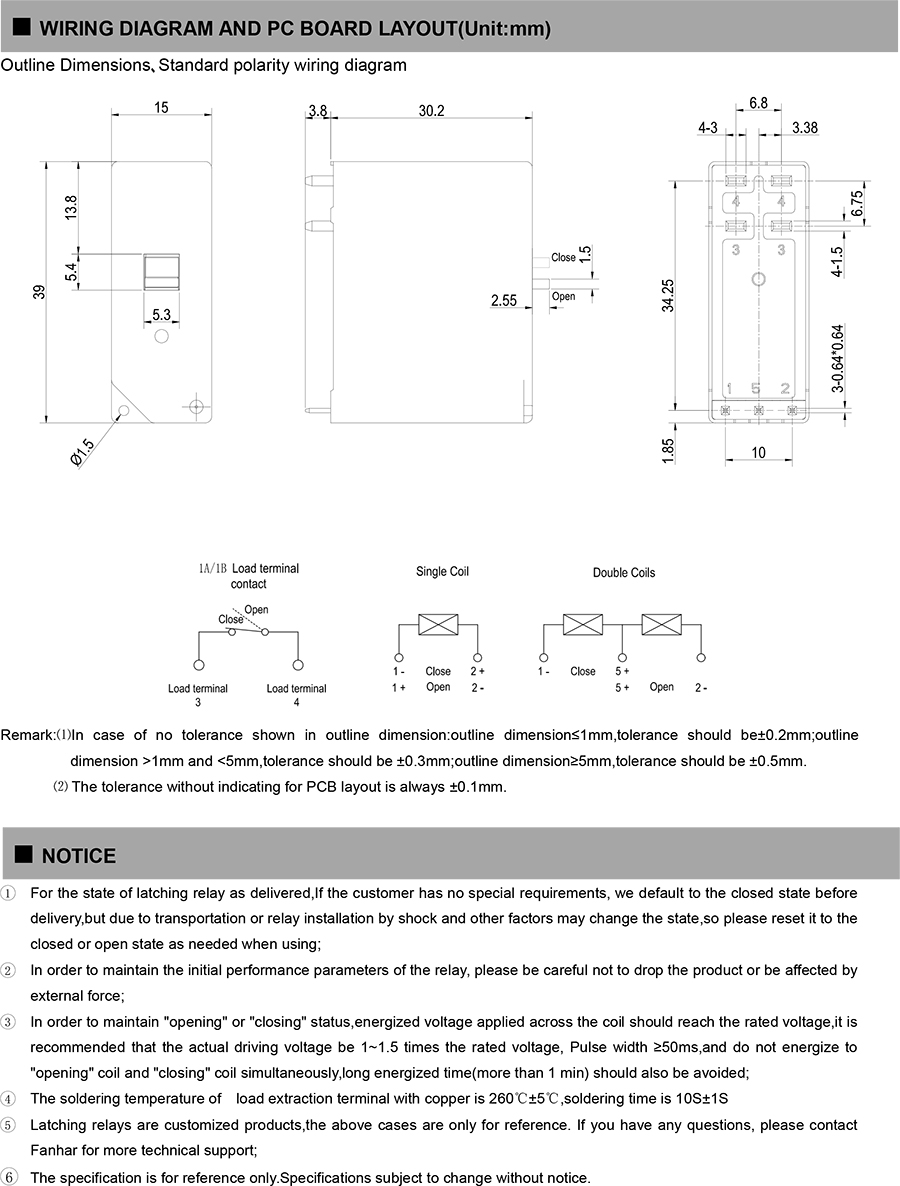

● Outline Dimensions:(39.0×15×30.2)mm
● Main application:charging pile,Smart home,Lighting control
Product Description
