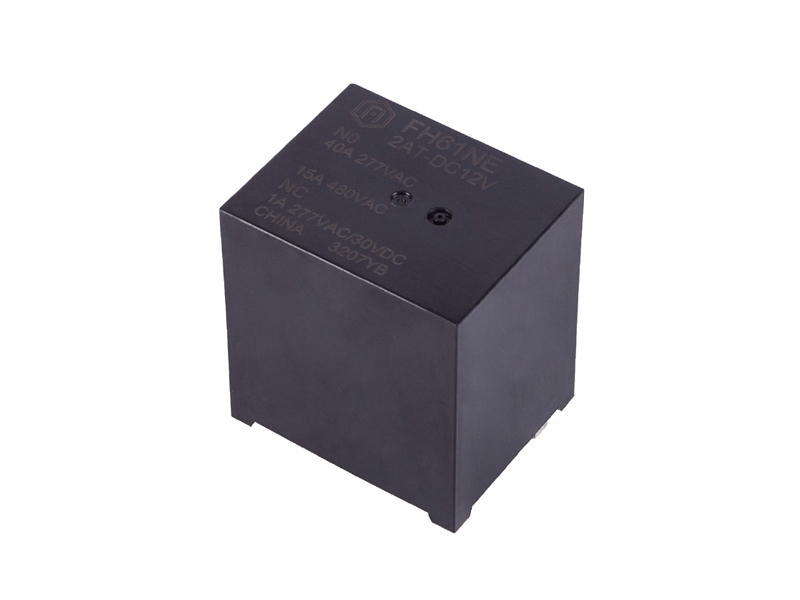

FH61NE
New energy Relay
![](/en/photos/20230405132811-XEFOAB5OAUM7-398381.jpg)
![](/en/photos/20181012062625-MXUK94BYZBTS-231231.png)
![](/en/photos/20181012062612-Q9KQLSPL8XAO-542886.png)
![](/en/photos/20181012062536-HMKJM6FEMCPD-682962.png)
Feature Description
● 2 sets of 40A main contact+1 set of auxiliary contact
● When the main contact sticks,Auxiliary contacts meet the safety monitoring function (According to IEC61810-3)
● Contact gap :3.6mm(main contact) 1.0mm(auxiliary contact)Auxiliary contact:Min0.5mm(When the main contact sticks)
● Coil power is:1.88W
● UL insulation system:Class F
● Outline Dimensions:(37.2x30x40)mm
● Main applications: Inverter for solar photovoltaic power generation,AC charge spots
● The coil voltage applied to complete machine to save power loss
Product Description
Download PDF Product Description![](/en/editor/../uploadfile/image/20240115/20240115145720_89935.jpg)
![](/en/editor/../uploadfile/image/20240115/20240115145721_42398.jpg)
![](/en/editor/../uploadfile/image/20240115/20240115145721_33094.jpg)
![](/en/editor/../uploadfile/image/20240115/20240115145721_47623.jpg)
